RFLO-XA Ultra43 Front Fork
The stock Ultra Bee fork is the part that gives up first. It is fine on a fire trail and out of its depth everywhere else — dive under brakes, harsh through square edges, and no way to tune any of it. Every rider ends up in the same place: the bike has the power, the front end can't use it.

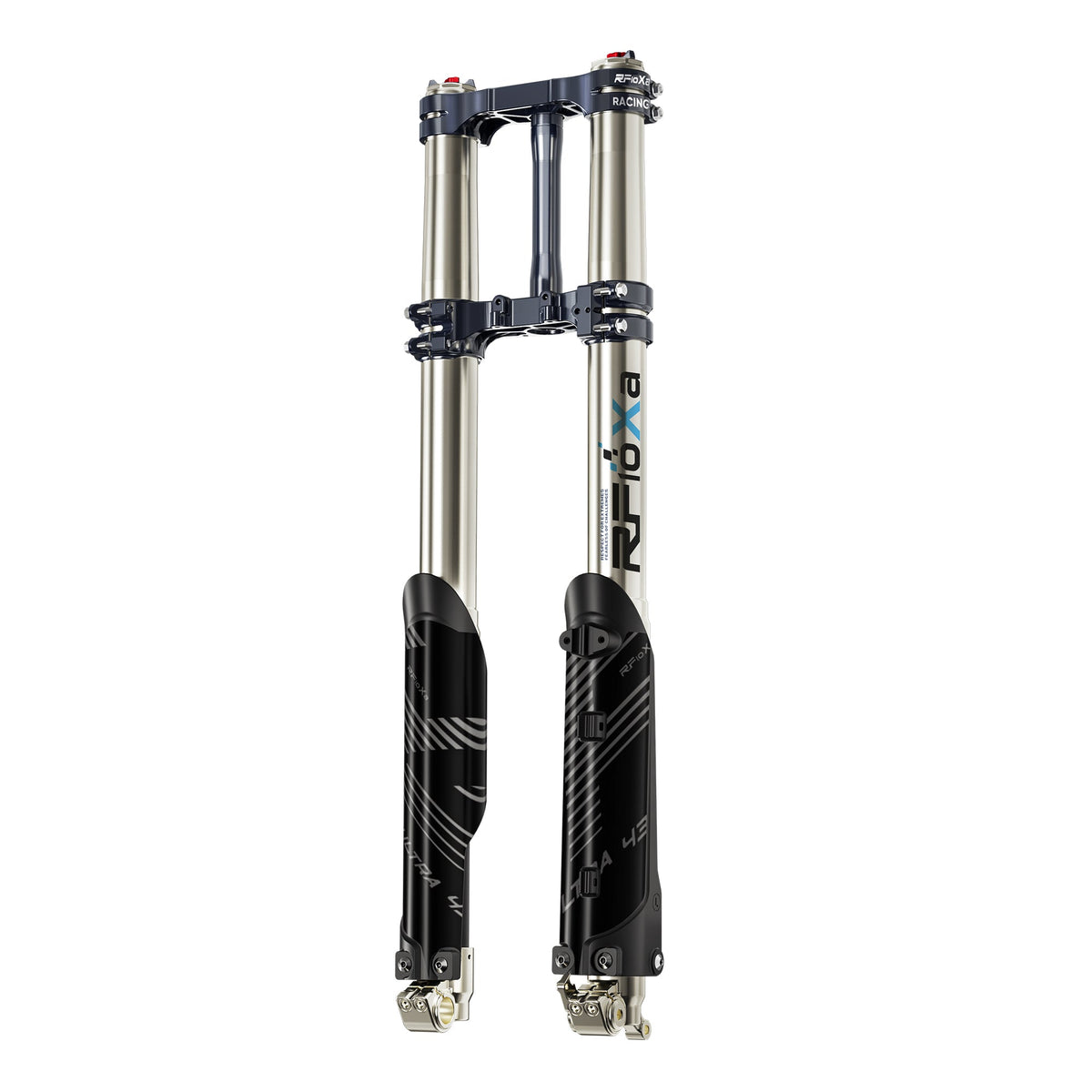

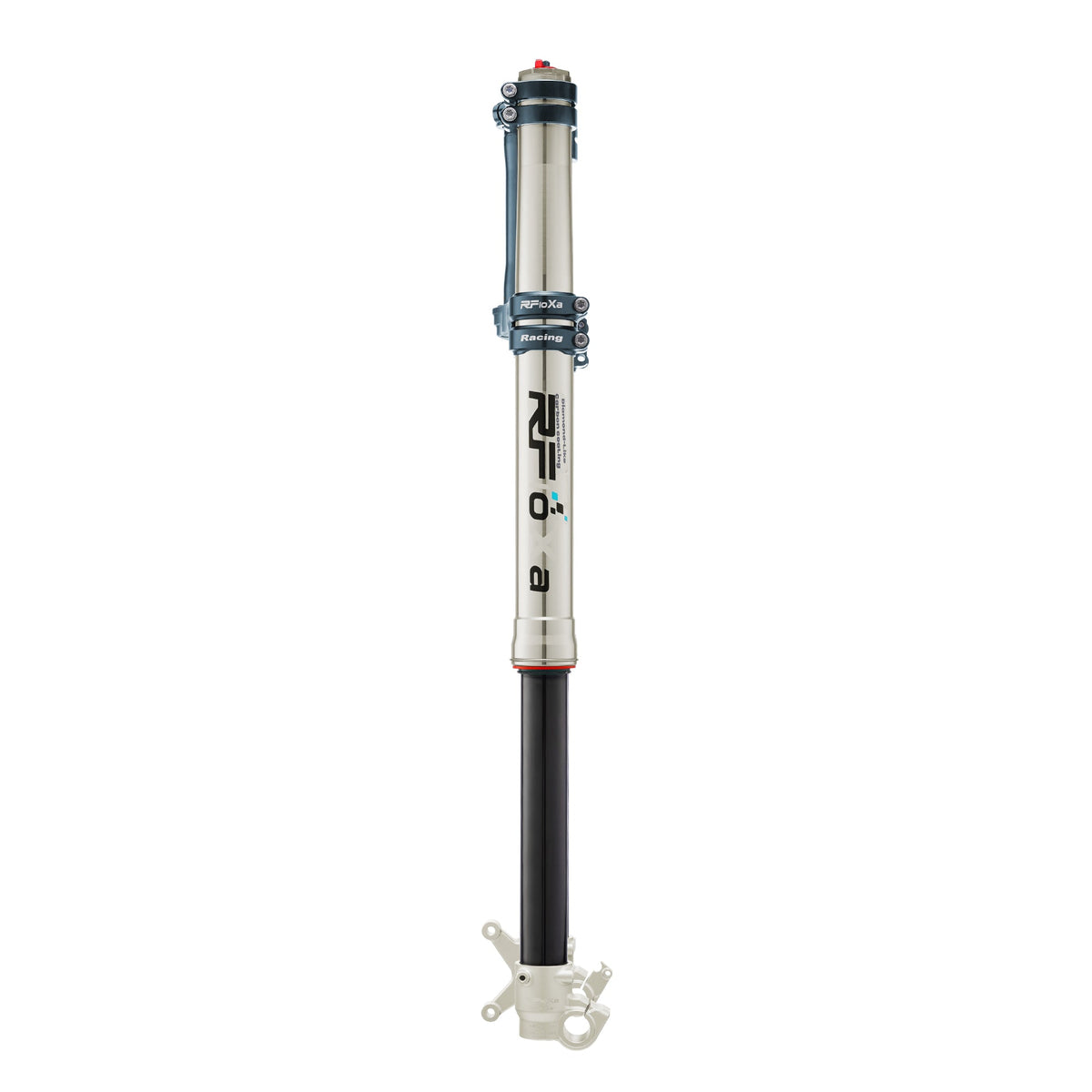

The Ultra43 is a full replacement front end — fork legs, internals and triple clamp. ∅43mm reinforced stanchions with a DLC coating, 251mm of travel, and a symmetric left-right damping circuit so both legs do the same work instead of one leg carrying the load. Premium SKF oil seals throughout. Everything a real MX fork adjusts, this adjusts.
Key Specifications

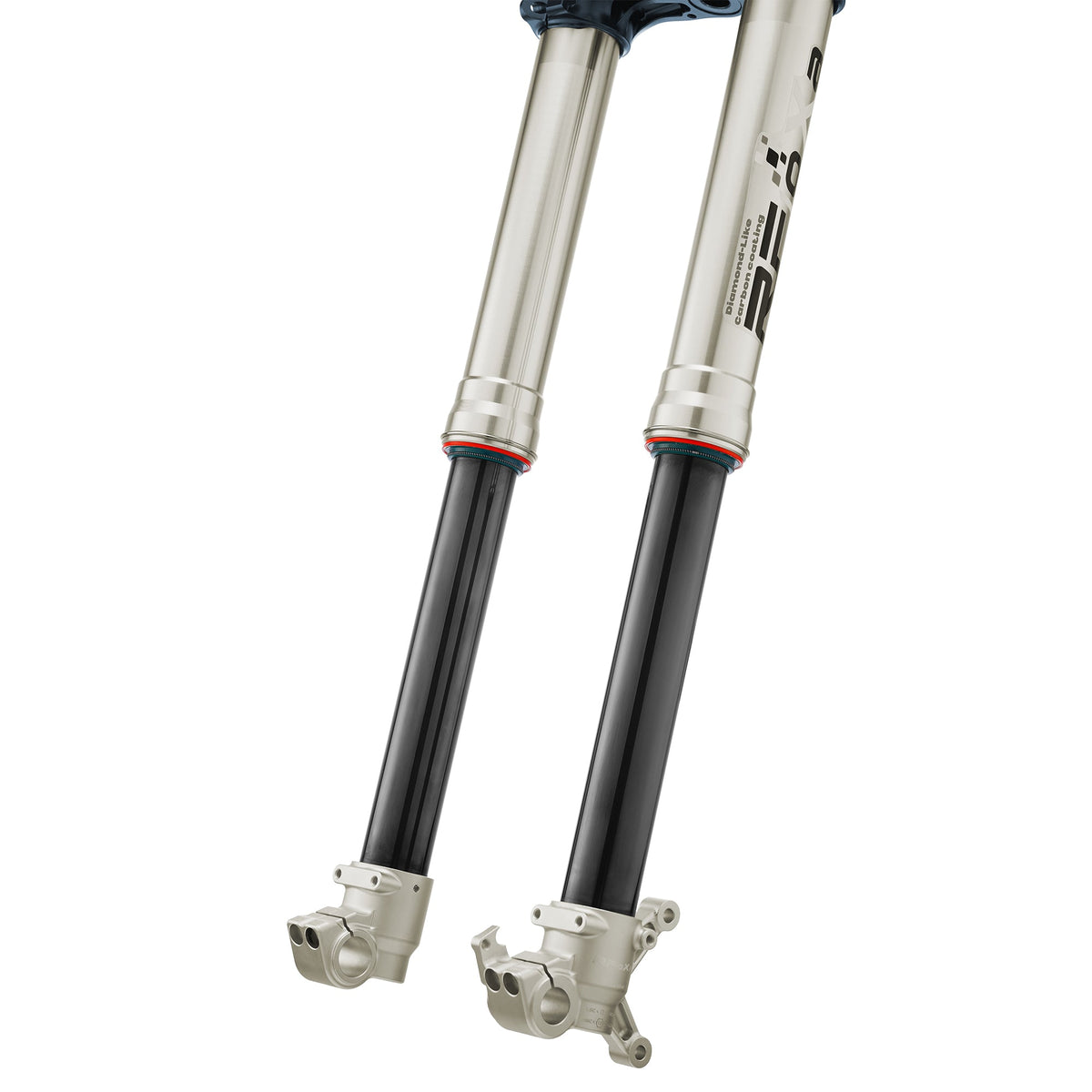

- Stanchion diameter: ∅43mm reinforced fork tubes, DLC-coated
- Travel: 251mm
- Centre distance: 850mm
- Damping: upside-down oil damping, dual spring, symmetric left-right internals
- Oil seals: premium SKF
- Caliper mount spacing: 78.5mm
- Disc size: ∅240mm
- Lowers: AL6061-T6 CNC-machined

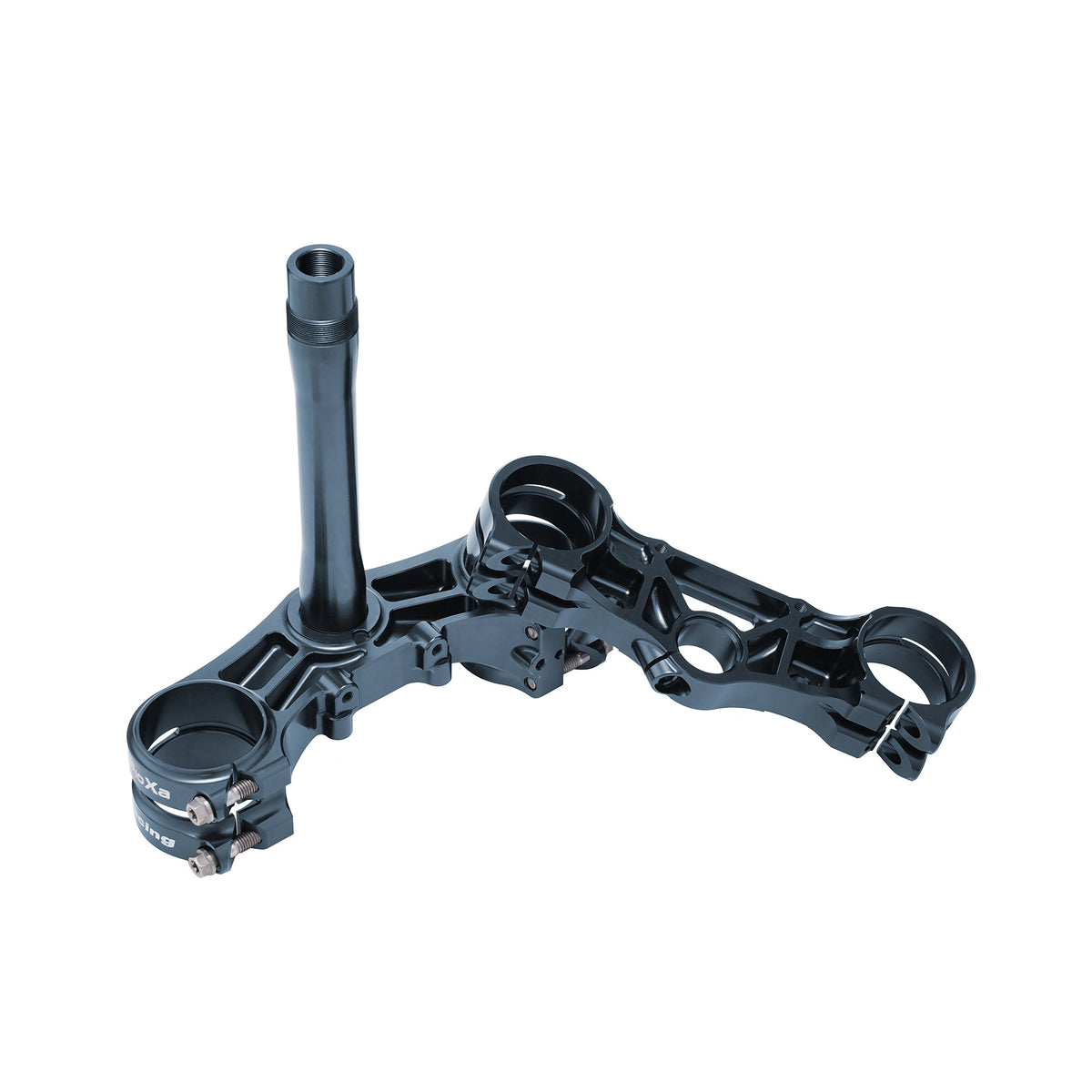

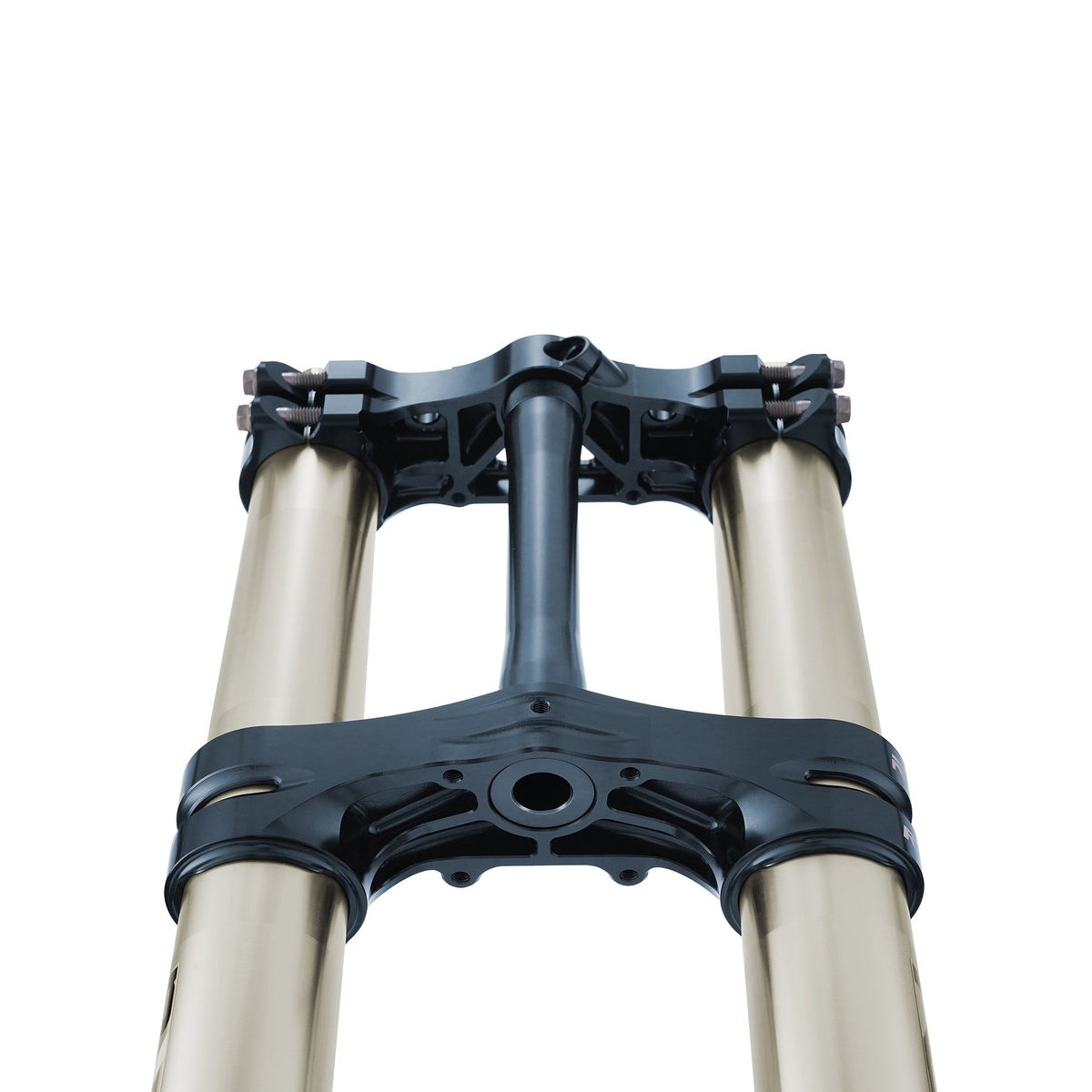

- Triple clamp: CNC-machined reinforced hollow clamp
- Springs: 55CRSI spring wire
- Fasteners: zinc-nickel alloy, EU standard

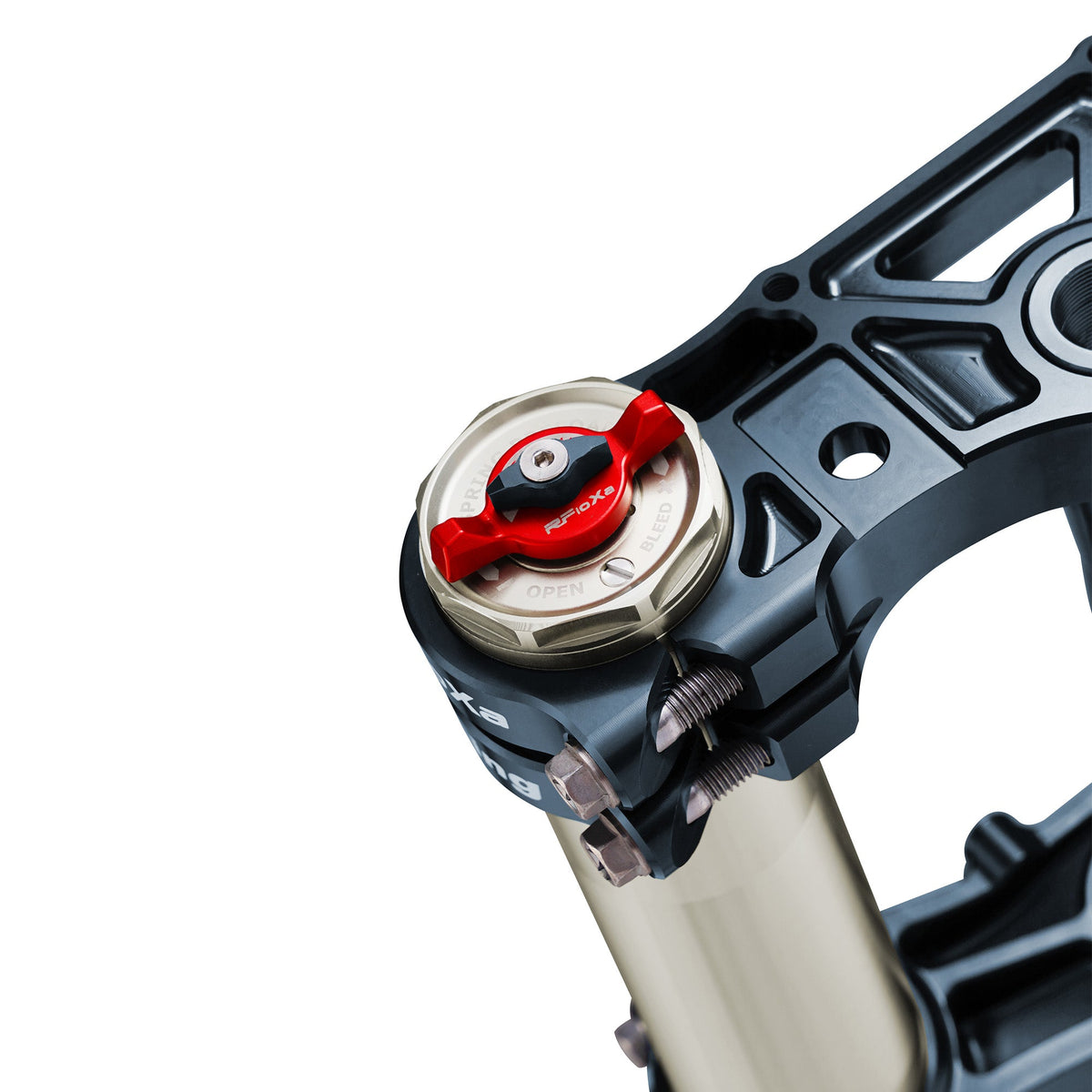

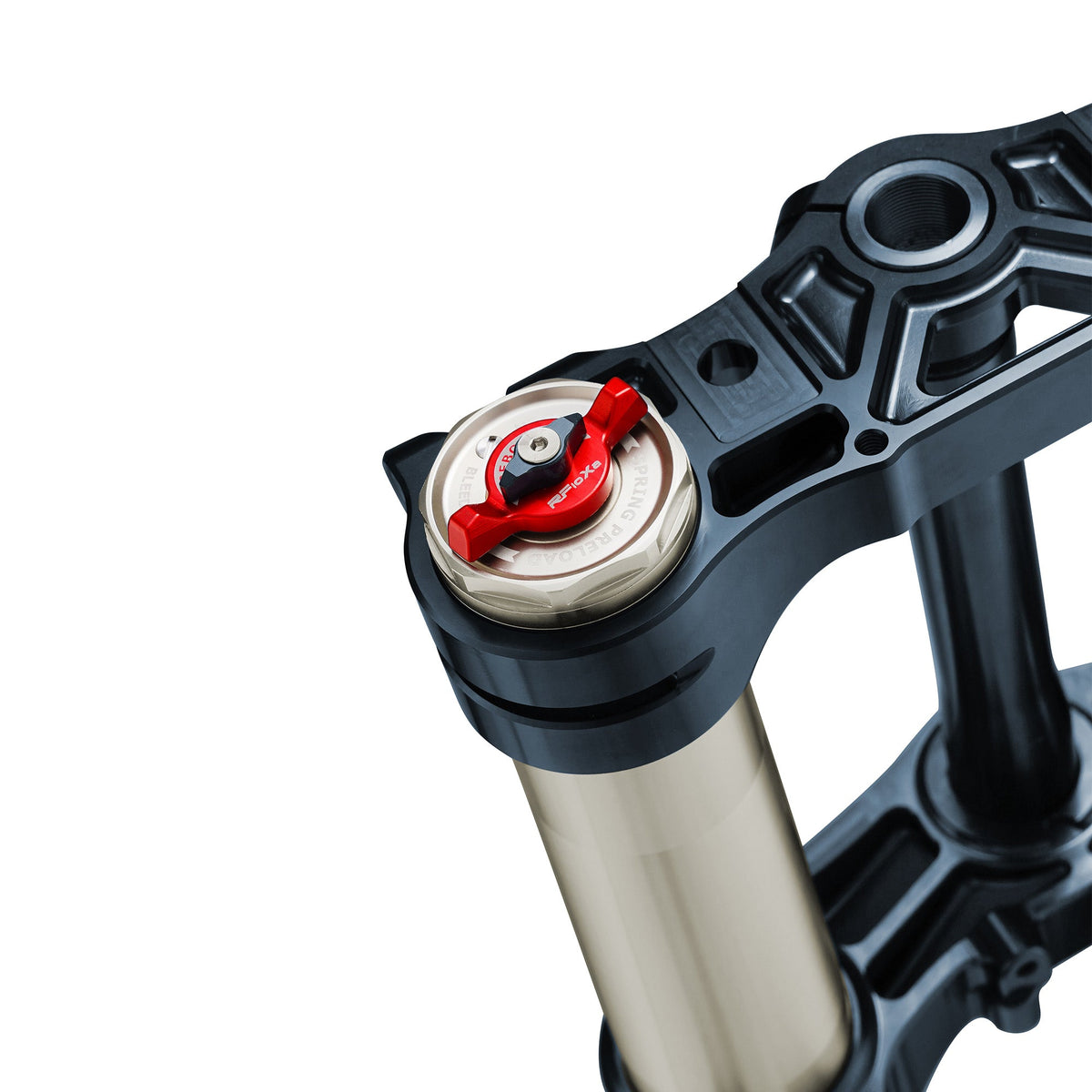

Adjustment Range
- High-speed compression: 30 clicks
- Low-speed compression: 10 clicks
- Rebound damping: 18 clicks
- Spring preload: 17 clicks
Fitment
Fits the Surron Ultra Bee only. It does not fit the Surron Light Bee, Light Bee X, Talaria or Segway — the centre distance and clamp geometry are Ultra Bee specific.
Spring Rate
This fork is supplied in the 27 lb spring rate, which suits a rider of 75–105 kg in gear. RFLO-XA's rate chart:
- 24 lb — 65–85 kg (143–187 lb)
- 27 lb — 75–105 kg (165–231 lb) — the rate stocked here
- 30 lb — 95–135 kg (209–297 lb)
If you are at the light or heavy end of the chart, message us before ordering and we'll tell you straight whether the 27 lb is right for you.
Stock
Two units in stock in Melbourne, ready to ship. Once they are gone the next set is a factory order with the usual lead time — we'll quote it honestly rather than take your money and make you wait.
Fitting
This is a full front-end swap. It is not difficult, but it is not a bolt-on accessory either: you will need to move your wheel, brake caliper and bars across, and set sag before you ride it. If you are not comfortable doing that, have a workshop fit it.
